Order No. :

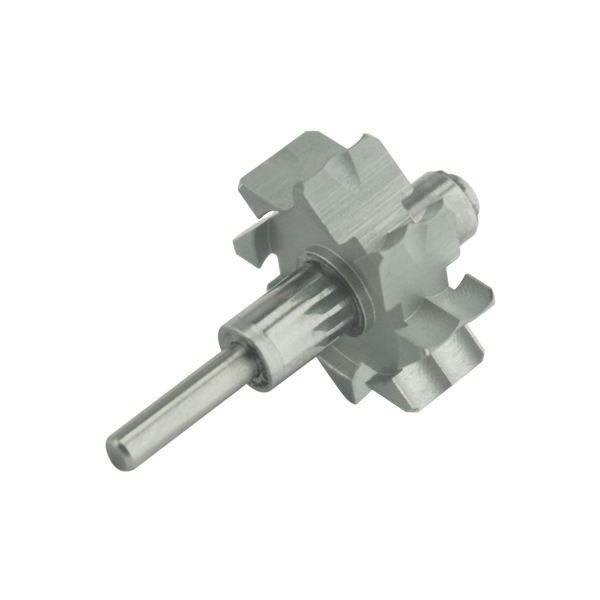

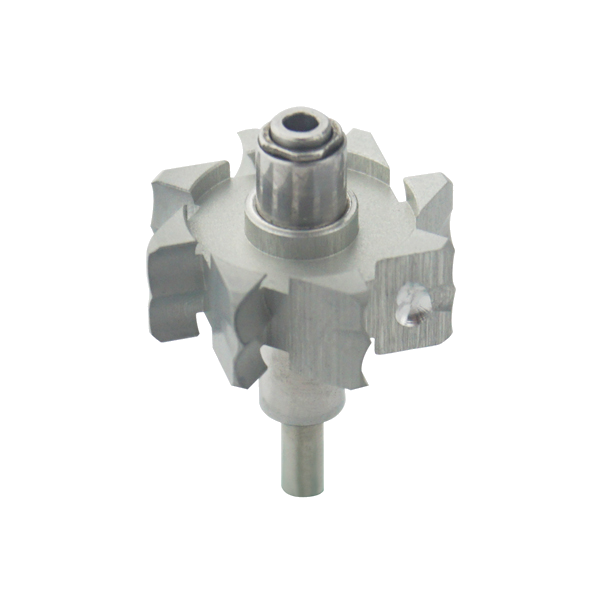

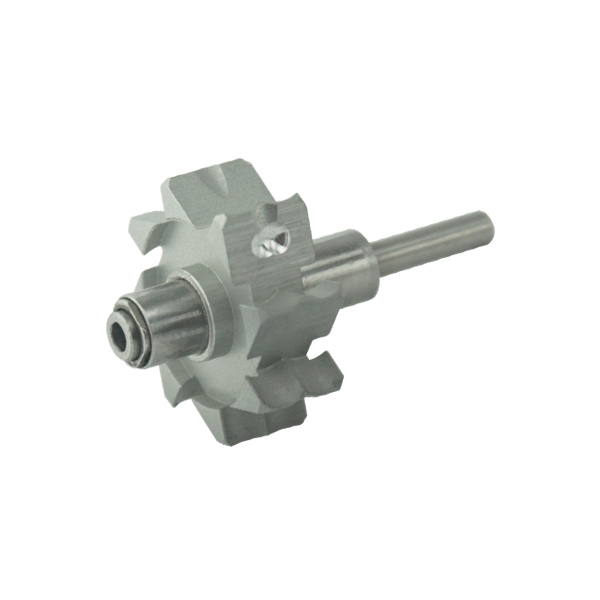

RT-SAX700-N (NSK Type Spindle, Recommand!)
RT-SAX700-K (Kavo Type Spindle)
Suitable for NSK Ti-Max X700, X700L，X700KL, TiX-TU03
Dynamically balanced rotor with better performance.
Less noise and longer working life.
Assembled with the best push button spindel of Rito Dental.
Note: The impeller of this rotor was modified. Please use the W&H type bearing for the lower and the NSK type bearing for the upper !!!
Bearing Model:  Upper RT-B000CTA, Lower RT-B004CTAi

About Spindles

We offer different type of spindles for the rotor.

NSK Type Spindles:  （Recommand for most of the clients)

Build with a strong spring and chuck inside the spindle, the chuck hold the bur (bur diameter 1.595mm) with 2.25-2.75KG grip power. The chuck will hold the bur tighter when there is pressure on the bur, the more pressure, the tighter it hold.

Advantage: Lub Free and more durable! It will always keep working even there is no lubrication on the spindle.

Disavantage: It didn't hold the bur as hard as the kavo model in the beginning. We need to explain to the dentists if they are not familiar with this kind of spindle before.

Kavo Type Spindles: (Most of the European dentist like this kind of Spindle)

Build with strong chuck, holding the bur with more than 4.5KG all the time.

Advantage: Hold the bur tighter all the time.

Disadvantage: The chuck may have problem if the client didn't lubricate the chuck.
Economic Type Spindles:
NSK to Kavo Economic type spindle, we don't offer warranty for special economic order.
